G-GHOST

Indoor Transparent LED Display G-GHOST Series

Indoor Transparent LED Display Technology,Available in Pixel Pitch: 10.4mm/3.91mm/2.8mm/2.6mm, Brightness:2000-7000nits,1000×1000mm/1000×500mm cabinet in 500×125mm,cabinet is 8.1KG only

Black

Extraordinary deep blacks

Excellence

Superb craftsmanship

Ultra-light

Ultra-Thin and Ultra-Light

Cool

Lower heat, longer lifespan

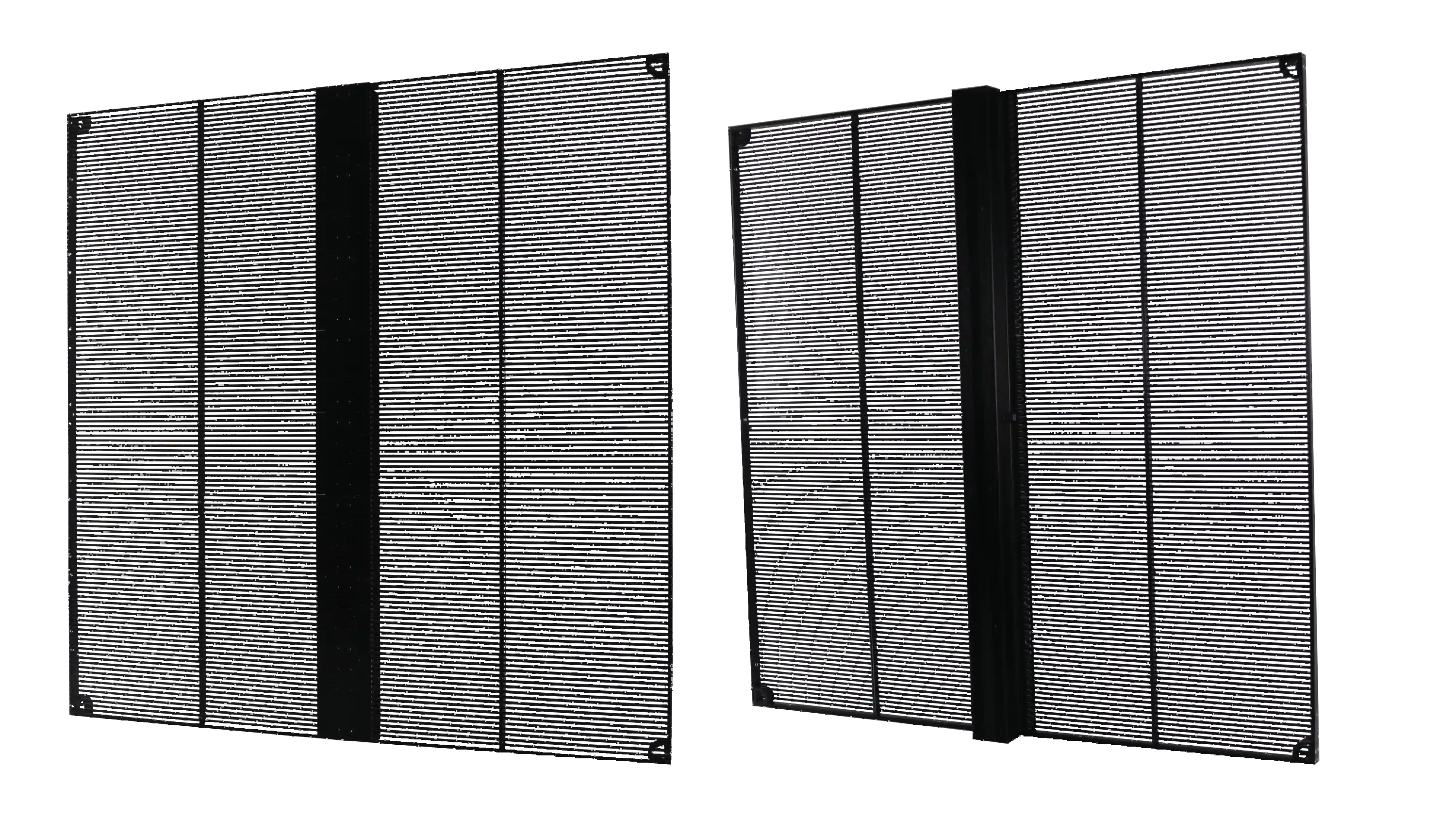

All-aluminum cabinet

All-aluminum cabinet

Better heat dissipation, lighter weight

Energy-saving

Energy-saving

Saves more electricity costs

EMC Class B Standard

Safe choice

Creative Shapes

Custom shapes available

Front-emission transparent LED screen

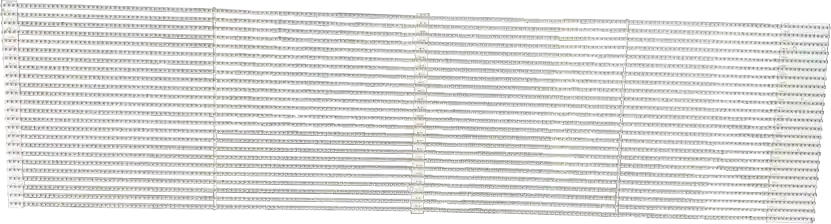

High light transmittance, light and thin, transparent module,easy installation and maintenance, energy-saving, customizable irregular shapes, strong floating visual effect.

High-efficiency heat
dissipation

By redesigning the cabinet and increasing the rated output of the power supply, the led screen can operate at low load at all times, effectively reducing heat generation.

Quick and Easy Assembly

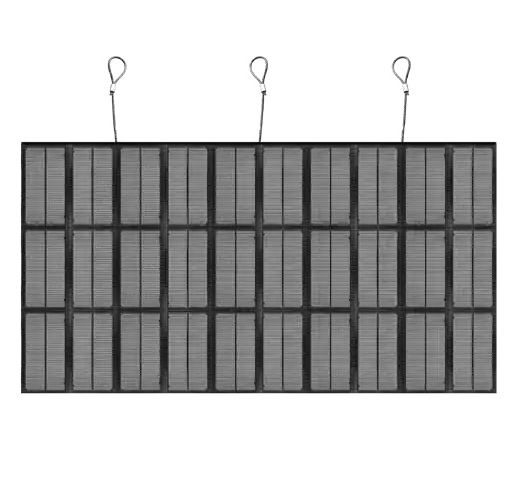

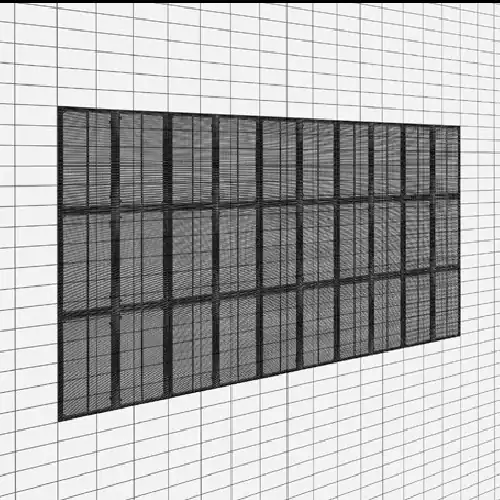

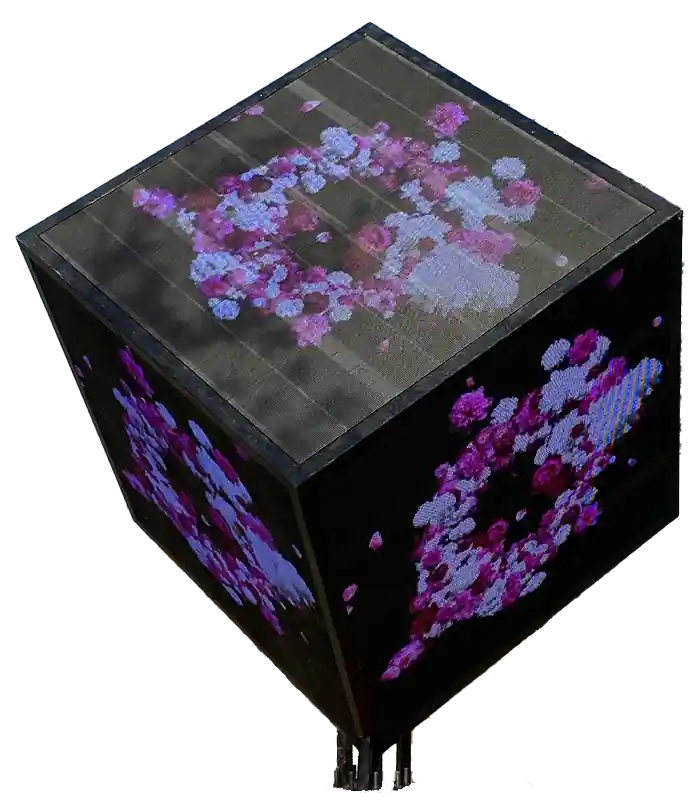

Boasting multiple installation solutions, the G-Ghost series ensures flexible and hassle-free installation. Supporting stacking, wall-mounting, hanging and precise 90° right-angle splicing, it effortlessly caters to a wide range of application scenarios.

Convenient for maintenance

The modules are connected to the cabinet via fine screws, ensuring safety while allowing front maintenance of the transparent LED screen.

Perfect Display Effect

The 160° ultra-wide horizontal and vertical viewing angles attract more potential customers. Our standard LED display delivers stable broadcast-grade images without scan lines, and the edges of the images remain clear and sharp when processing dynamic content.

PRODUCT SPECIFICATION

Square Arrangement Transparent Led Display

Pixel Pitch

2.6－2.6mm

2.97－2.97mm

3.47－3.47mm

3.91－3.91mm

Led Lamp Bead Model

SMD1415

SMD1415

SMD1415

SMD1415

Moudle Size(W*H)

500×62.5mm

500×62.5mm

500×62.5mm

500×62.5mm

Module Resolution(W*H)

192×24

168×21

144×18

128×16

Panel Size(W*H*D)

500×500/1000

1000×500/1000

1000×750/1000

1000×500/1000

Panel Resolution(W*H)

192×192/384

336×168/336

288×216/288

256×128/256

Module Arrangement(W*H)

1×8/1×16

2×8/2×16

2×9/2×12

2×8/2×16

Density of Pixel dots/㎡

147456

112896

82944

65536

Transparency Rate

40%

42%

45%

50%

Panel Weight（kg/m²）

12.5kg

12kg

11kg

10kg

Scan Method

24 Scan

21 Scan

16 Scan

16 Scan

Refresh Rate

3,840Hz

Panel Material

Aluminum

Moudle/Panel Fixed Way

Front

Viewing Angle

140°/140°

Brightness

≤5000nits

Gray Scale

14-16bits

Signal Input

AV,S-Video,VGA,DVI,YPbPr,HDMI,SDI

Operating Voltage

AC:110V~240V,50~60Hz

Maximum Power W/㎡

800

Average Power W/㎡

240

Operating Environment

-20℃~60℃ 10%~90%RH





Rectangular arrangement Transparent Led Display

Pixel Pitch

2.6－5.2mm

2.8－5.6mm

3.9-7.8mm

10.4mm

LED lamp bead model

SMD1415

SMD1921

SMD1921

SMD2727

Moudle Size(W*H)

500*125mm

500*125mm

500*125mm

500*125mm

Module Resolution(W*H)

192×24

176×22

128×16

48×12

Panel Size(W*H*D)

1000×500/1000

1000×500/1000

1000×500/1000

1000×500/1000

Panel Resolution(W*H)

384×84/168

352×88/176

256×64/128

96×48/96

Module Arrangement(W*H)

2*7/2*8

2*4/2*8

2*4/2*8

2*4/2*8

Density of Pixel (dots/m2)

73728

61952

32768

9216

Transparency rate

55%

60%

75%

80%

Panel Weight（kg/m2）

8.5kg

10kg

8.1kg

8.1kg

Scan Method

12 Scan

11 Scan

8 Scan

3 Scan

Refresh rate

3,840Hz

Panel Material

Aluminum

Moudle/Panel Fixed Way

Front

Viewing angle

140°/140°

Brightness

≤5000nits

Gray Scale

14-16bits

Signal Input

AV,S-Video,VGA,DVI,YPbPr,HDMI,SDI

Operating Voltage

AC:110V~240V,50~60Hz

Maximum Power（W/m2）

800

Average power（W/m2）

240

Operating environment

-20℃~60℃ 10%~90%RH
