How Do I Choose the Right Dimensions for My LED Video Wall?
How to Choose the Right LED Video Wall Dimensions & Configuration
We deliver tailored, straightforward LED video wall solutions based on your venue’s available installation space and required screen shape. For most standard deployments, we recommend maintaining a 16:9 aspect ratio — the industry-standard format for universal content compatibility and optimal viewing experience.
Stage LED Video Wall Width Calculation (Industry Quick Guide)
To find the ideal width for your stage LED wall, start with your total stage width and subtract 10 feet as a general guideline. For example, if your stage is 50 feet wide, a 40-foot LED video wall will deliver the optimal viewing experience for your audience.

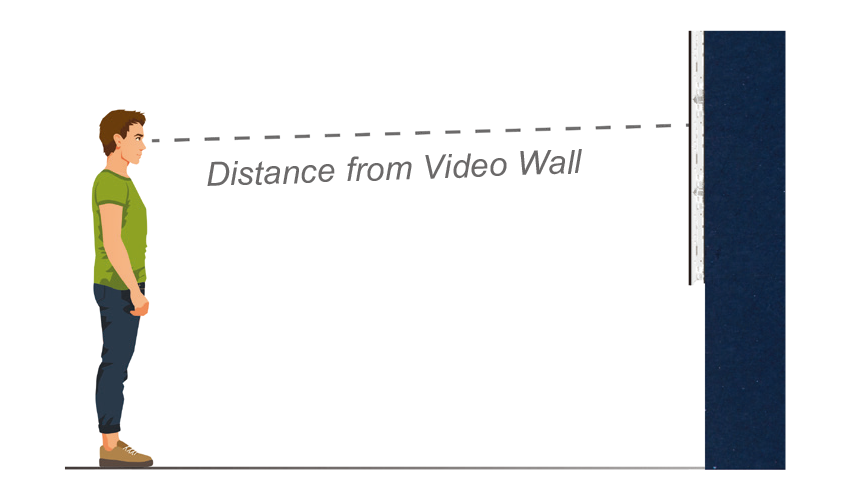

Critical Selection Question: What Is the Audience’s Minimum Viewing Distance to the LED Wall?
Your audience’s proximity to the LED video wall is a make-or-break specification for panel selection, as it directly impacts optimal pixel pitch, brightness requirements, and overall project cost.
Indoor vs Outdoor LED Panel Core Differences
Outdoor LED panels typically come at a higher cost than indoor panels, with the defining performance difference being peak brightness — outdoor panels are engineered for high-brightness visibility in direct sunlight, while indoor panels are optimized for controlled ambient light environments.

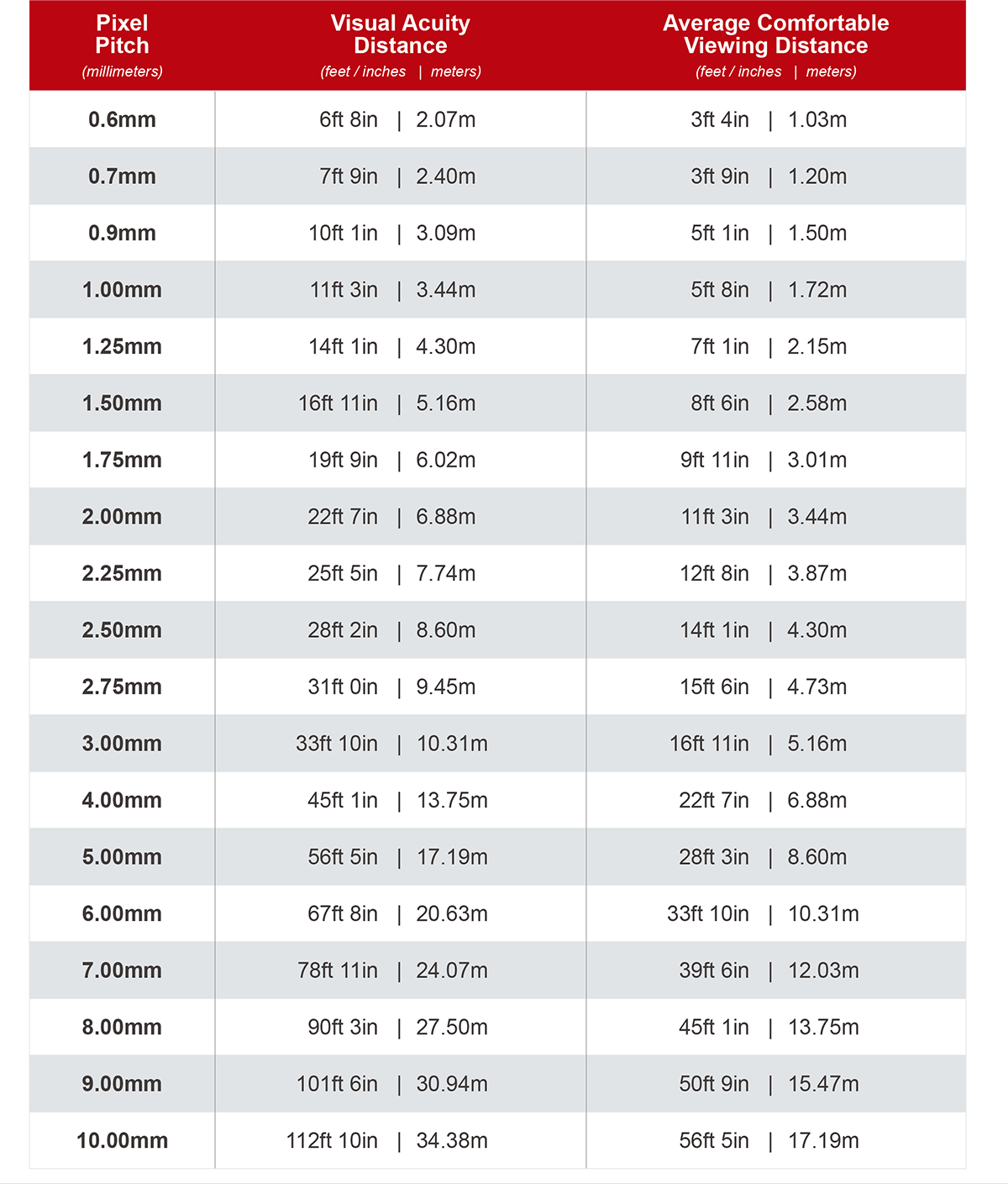

LED Display Viewing Distance: Pixel Pitch Chart & Calculation Guide
This comprehensive LED display viewing distance chart includes industry-standard calculations for two critical viewing performance metrics: Visual Acuity Distance and Average Comfortable Viewing Distance, with full coverage of all common commercial LED display pixel pitches ranging from 0.6mm to 10mm.
