LED Roll-up Display G-Roll

LED Roll-up Display
G-Roll Series

Glind's products have passed multiple authoritative qualification certifications. We provide a one-stop solution for your project and can also offer customized solutions according to your needs,Available in Pixel Pitch: 0.78mm/0.976/1.25mm/ 1.56mm/ 1.95mm/2.6mm/3.91mm

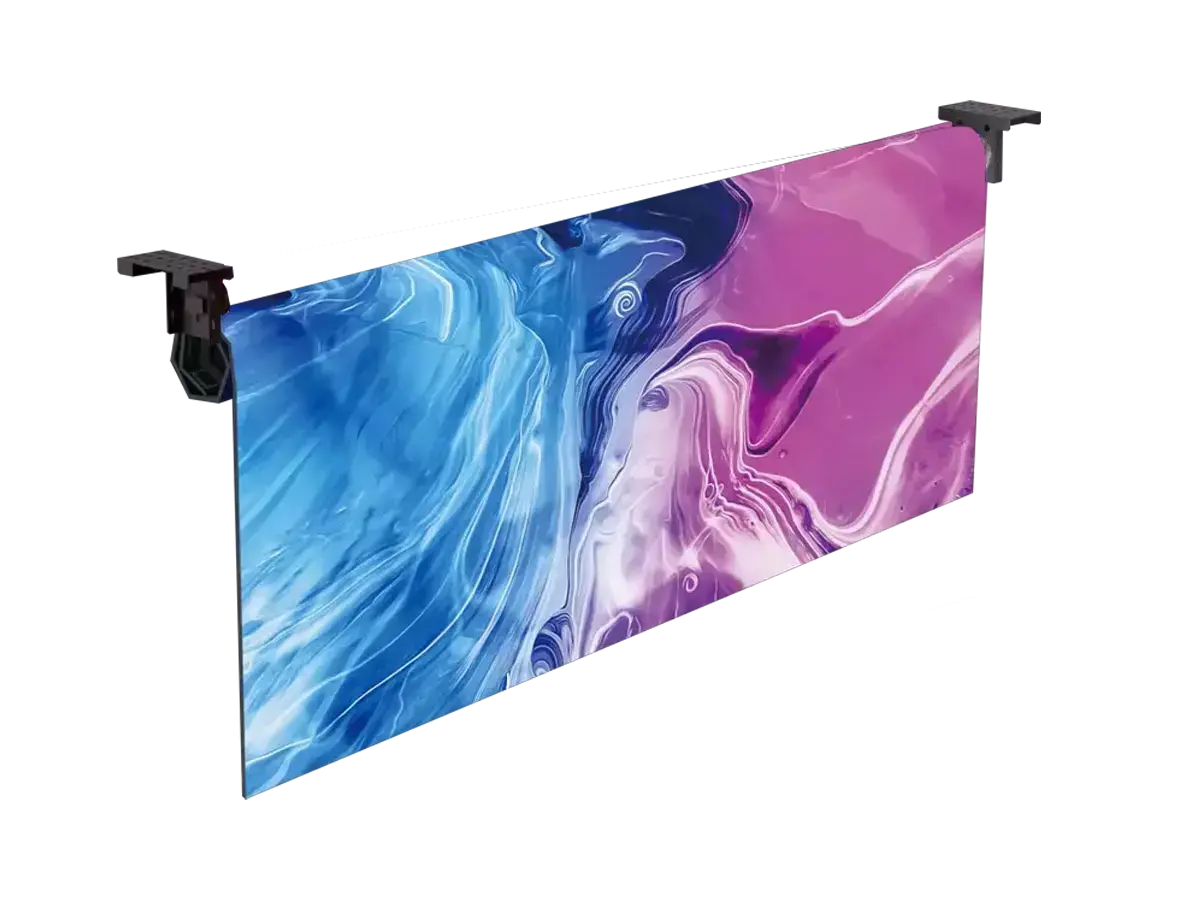

Rolling LED Display Screen

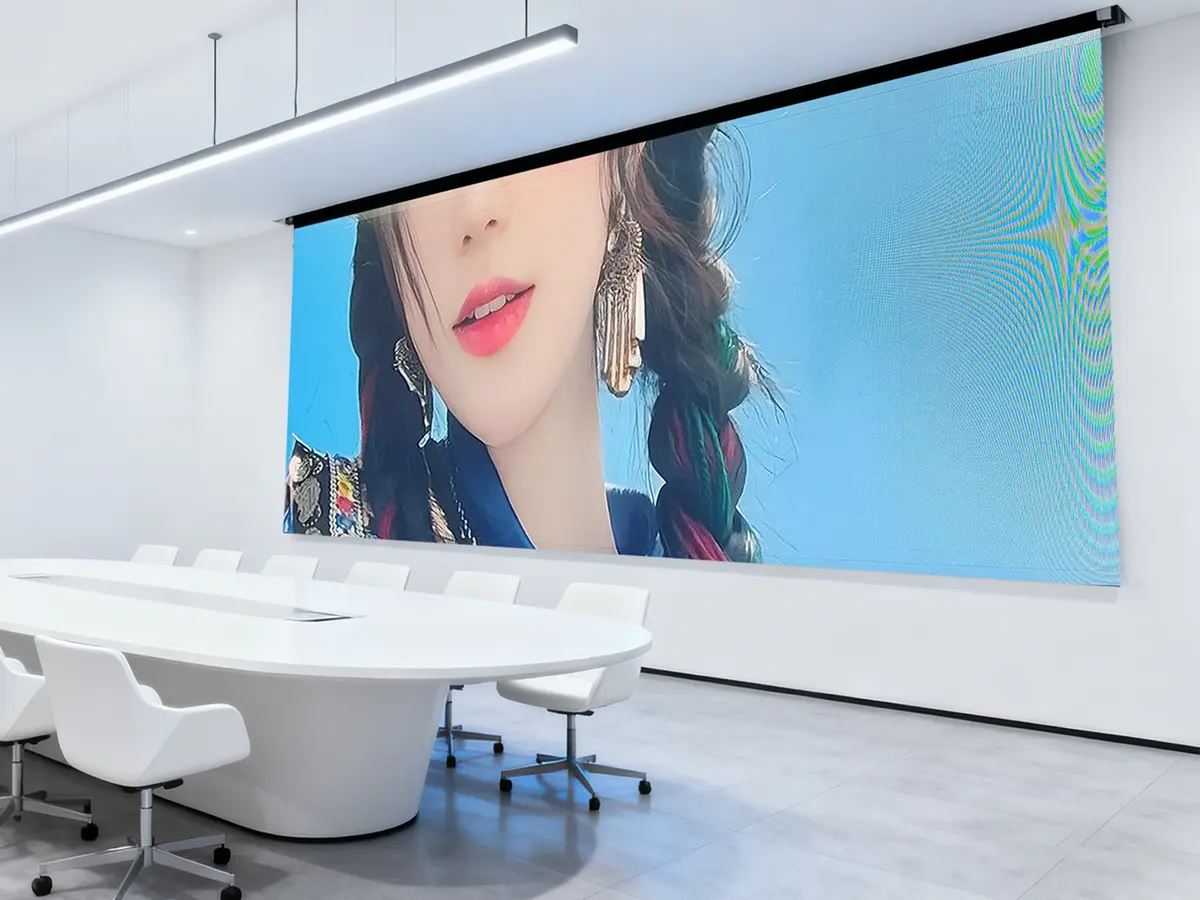

Rollable LED Display For Conference

Black

Extraordinary deep blacks

Excellence

Capture every brilliance

Thickness Only 17mm

Ultra-Thin and Ultra-Light

Cool

Stay cool, enjoy more

Fast installation

Easy maintenance

Energy-saving

Energy-saving

Less consumption

EMC Class B Standard

Safe choice

Creative Shapes

Convex and concave curved Splicing

Excellent Design

  • Support customization
  • High-definition display,the minimum pixel spacing supports 0.78mm
  • Reel design,when not in use, it can be rolled up and hidden

Feature Intro

  • Ultra-light  and Ultra-thin(thickness: 17mm)
  • DC24-48V input, safety usage
  • High-end DOB solution, big viewing angle
  • Exquisite shape and foldable, small storage spaces
  • No need support bases, lay down the ground directly
  • Seamless splicing, no screw holes on the surface of module, and exquisite structure
  • 1000kg/m² load capacity
  • Built-in interactive chip, sensing speed 0.016s

Multiple Installation Methods
Flexible Installation

K-MAT series products offer a variety of installation methods, featuring flexible and convenient installation. These methods include ceiling fixed installation, floor tile installation, truss rental mobile installation,hanging, truss installation,Fast rental with a frame installation and tripod installation, which can easily meet the needs of various application scenarios.

LED Roll-Up Display
Patent

Glind will obtain the professional certificate of LED Roll Up display invention in August 2025

Viewing Angle

140°-160° visual range,providing more fleixble and wider viewing experiences which ensures the efficiency and quality of information transmission.

PARAMETER TABLE

  Model No. G0078 G0097 G0125 G0156 G0195 G0026 G0391
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)
  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
